This leak detection starter kits allows the user to place a wireless detector in an area that may be at risk of water damage, which will trigger a notification on alert. This notification can be sent to any mobile device which allows external users to be notified of any leaks whilst not at home.
Perfect for placing under baths, sinks or in area with a lot of water based equipment such as a boiler cupboard.
Comes fully programmed and customised to your room names, ready for tool-less installation.
Contents:
- 1qty Smart Hub
- 1qty Battery Operated Leak Detector

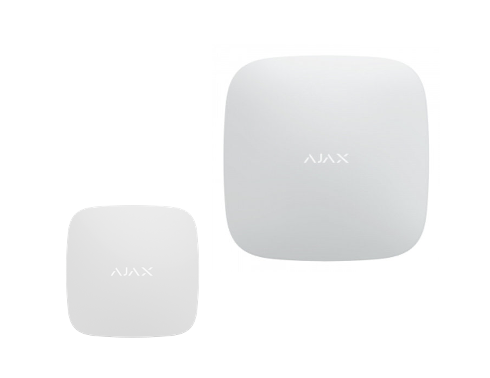

Hub & Flood Sensor
Hub
Classification
The radio channel central unit with the support of visual alarm verification detectors
Maximum amount of devices that could be connected to the hub - 100
Video surveillance support - Up to 25 cameras or DVRs
Maximum amount of users - 50
Maximum amount of rooms - 50
Maximum amount of security groups - 9
Communication channels - Ethernet & Two 2G SIM-cards
Alarm signals
Delivery time: 0.15 sec
Notification types: SMS, call, push-notification
Switching between the SIM-cards 4 minutes
The speed of alarm delivery to the CMS - Instant
Power supply - Main supply: 110−240 V & Battery backup: Li-Ion 2 А·h
Up to 16 hours of offline operation when the Ethernet is switched off
Jeweller radio technology - Communication range with detectors — up to 2,000 m in an open space
Two-way communication between devices
Operating frequencies — 868,0-868,6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Frequency hopping
Wings radio technology - Transmission of visual confirmations
Delivery verification of packages
Operating temperature range
Warranty - Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Complete set
Ajax Hub 2 intelligent control panel
SmartBracket mounting panel
Power cable
Ethernet cable
Installation kit
SIM card (depending on region)
User’s guide
Leak Sensor
Wireless flood detector detects first signs of leakage within milliseconds. It is installed without using tools.
Raises the alarm as soon as water gets on one of the four pairs of contacts
Registers when the area dries out and cancels the alarm
The detector mounts by placing on the floor in areas of possible water inflow
The device detects first signs of flooding as soon as water gets on one of the four pairs of contacts on the bottom of the detector.
The device has IP65 enclosure protection, meaning it is completely protected against dust and moisture.
It can be installed in just one minute. The detector only has to be placed on the floor under a washing machine, dishwasher, bathtub or heating radiato
