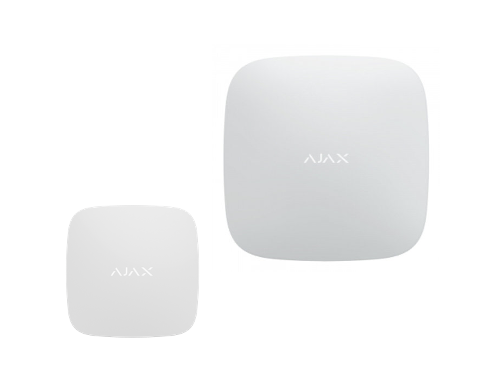

Hub
Classification
The radio channel central unit with the support of visual alarm verification detectors
Installation - Indoors
Maximum amount of devices that could be connected to the hub - 100
Video surveillance support - Up to 25 cameras or DVRs
Maximum amount of users - 50
Maximum amount of rooms - 50
Maximum amount of security groups - 9
Communication channels - Ethernet & Two 2G SIM-cards
Alarm signals
Delivery time: 0.15 sec
Notification types: SMS, call, push-notification
Switching between the SIM-cards 4 minutes
CMS connectivity
Contact ID, SIA
The speed of alarm delivery to the CMS - Instant
Software - OS Malevich
Power supply - Main supply: 110−240 V & Battery backup: Li-Ion 2 А·h
Up to 16 hours of offline operation when the Ethernet is switched off
Jeweller radio technology - Communication range with detectors — up to 2,000 m in an open space
Two-way communication between devices
Operating frequencies — 868,0-868,6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Frequency hopping
Wings radio technology - Transmission of visual confirmations
Delivery verification of packages
Operating temperature range
From −10°С to +40°С
Size - 163×163×36 mm
Weight - 362 g
Warranty - Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

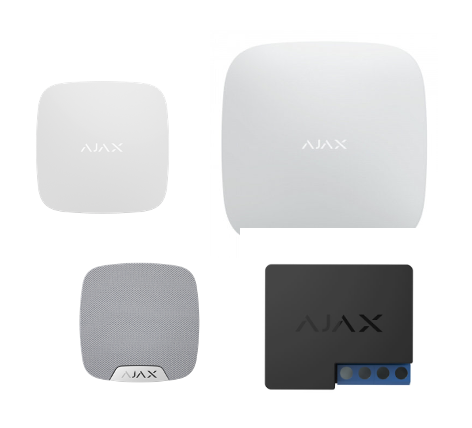

Complete set
Ajax Hub 2 intelligent control panel
SmartBracket mounting panel
Power cable
Ethernet cable
Installation kit
SIM card (depending on region)
User’s guide
Internal Siren
Wireless indoor siren that loudly notifies of an alarm during detector activation. It is installed indoors to warn of danger or deter intruders. Sound level and alarm length are set in the mobile application.
- Indicates armed/disarmed state by means of a built-in LED
- External LED can be connected
- Sound level configurable from 81dB to 105 dB at a distance of 1 m
- Alarm length configurable from 3s to 180s
- Grade II (EN 50131)
- IP50 rated
- Operates up to 5 years without battery replacement
Relay
A radio channel controller which allows you to control low current equipment. It is used to switch on/off appliances such as garage gates, electric locks, and restarting modems/routers. The device switches off automatically during overcurrent, voltage surge and overheating. It also provides information on energy consumption which is available in the mobile application.
- Operates from 7-24 V DC voltage sources
- Rated for 200,000 switch ons
- Maximum load of 5A at 36V DC / 13A at 230V AC
- Installed into electric switchboard or junction box
Leak Sensor
Wireless flood detector detects first signs of leakage within milliseconds. It is installed without using tools.
Raises the alarm as soon as water gets on one of the four pairs of contacts
Registers when the area dries out and cancels the alarm
The detector mounts by placing on the floor in areas of possible water inflow
The device detects first signs of flooding as soon as water gets on one of the four pairs of contacts on the bottom of the detector.
The device has IP65 enclosure protection, meaning it is completely protected against dust and moisture.
It can be installed in just one minute. The detector only has to be placed on the floor under a washing machine, dishwasher, bathtub or heating radiato
